• Class

        WS/REL0

        J-STD-005C

      • Stencil

        ~ 16 hours

        hrs at 30-70% R/H @20-25ºC

      • Tack

        30-37

        Tack force g/cm

      • Print

        200-275

        Viscosity in Malcom mPA/s 10RPM @25ºC x10³

      • Dispense

        100-140

        Viscosity in Malcom mPA/s 10RPM @25ºC x10³

      Skip to product information
      1 of 1

      STIRRI®

      SKU:SP-YMT-020-062-3

      Mesh Type
      Packaging
      Regular price $16.32 USD
      Regular price $16.32 USD Sale price $16.32 USD
      Sale Sold out

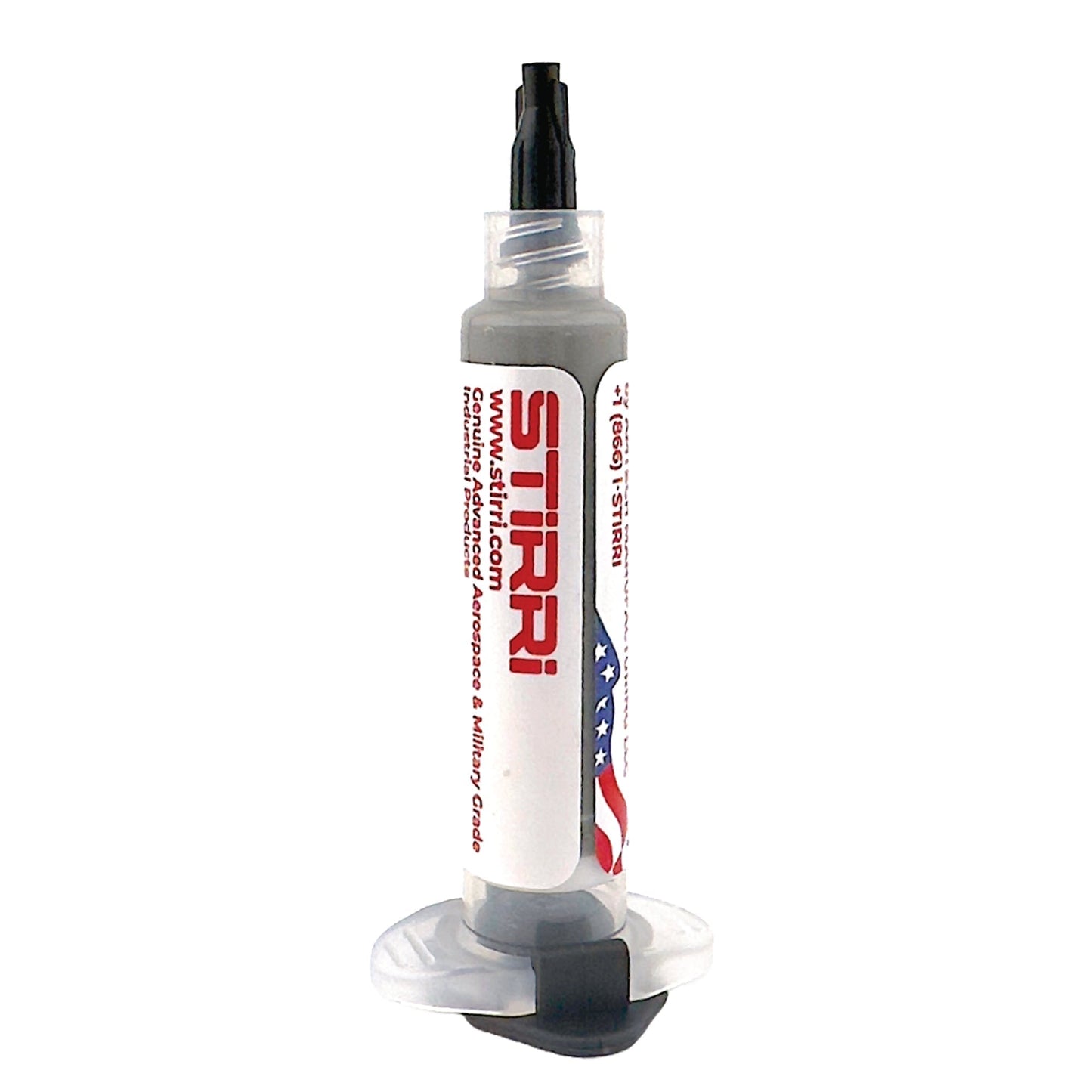

      HydraMtº-062  Sn62Pb36Ag2 ultra low-voiding water-soluble leaded solder paste for OEM manufacturers requiring instant no-fail wetting action and soldering assurance with minimum residue and easy cleaning, and low regulatory burden.

      Hydra™-series is the world's first water-soluble solder paste with QC-Aid™ optical tracer glowing in UV for instant visual QC certification, without complex tech environment or excessive training - Hydra's residue glows in UV/blacklight quickly exposing applicable areas - essential for quality driven organizations.

      UV light is for optional for QC certification only - not required for operating the paste.

      This material is also available as OEM-43T without QC-Aid™, meaning no specific optical UV-tracer has been deployed

      Suitability

      Solder Paste Viscosity

      Values in Malcom @ 10 RPM/25ºC x10³ mPa/s
      Printing: 200-275
      Dispensing: 100-140

      Stencil Life

      Hrs @ 30-45% RH and 20-25°C

      ~ 16 hours Hrs @ 45-75% RH and 20-25°C

      Printer Operation

      Print Speed: 25-100 mm/sec

      Squeegee Pressure: 70-250g/cm of blade

      Under Stencil Wipe: Once every 10-25 prints, or as necessary

      Some adjustments may be necessary depending on process requirements

      Stencil Cleaning

      No-clean solder paste that can be left on the board for many SMT assemblies. For applications requiring cleaning, the paste can be cleaned using commercial residue removers.

      Automated cleaning systems for both stencil and misprinted boards. Manual cleaning using isopropyl alcohol (IPA), co-solvents and/or ultrasonic scrubbers, vapor degreaser.

      Do you make this paste untraceable - without QCA?

      UV light is for optional for QC certification only - not required for operating the paste.

      However, this material is also available untraceable - without QC-Aid™, meaning no specific optical UV-tracer has been deployed. Contact us for the MPN (Manufacturing Part Number) without UV-tracer.

      Storage and Handling

      To obtain the maximum shelf life STIRRI Soldering Paste & Liquid Solder™ should be stored in a refrigerator between 3-8°C (37-46°F). Unopened solder paste stored at room temperature, 25°C (77°F). Syringes and cartridges should be stored in the refrigerator vertically, dispensing tip pointing down.

      Allow 4-8 hours for solder paste to reach optimal operating temperature of 20-25°C (68-77°F). To avoid condensation inside solder paste - keep solder paste container sealed while warming the solder paste to operating temperature, otherwise moisture may end up inside the container and contaminate solder paste!

      NEVER FREEZE SOLDER PASTE!

      Safety Notice

      This product is designed for professional consumers. Information contained herein is based on technical data that we believe to be reliable and is intended for use by persons having technical skill, at their own risk. Consumers should make their own tests to determine the suitability of each product for their particular process. Manufacturer or distributors will assume no liability for results obtained or damages incurred through the application of the data presented - try on a small non-critical surface first!
