ASM-TF universal no-clean tacky soldering flux for automated assembly (ROL0)

    Automated Soldering Machines - solder paste printers, automatic dispensers, vacuum stencil cleaners

    1 5

    STIRRI®

    TF-SSM-005

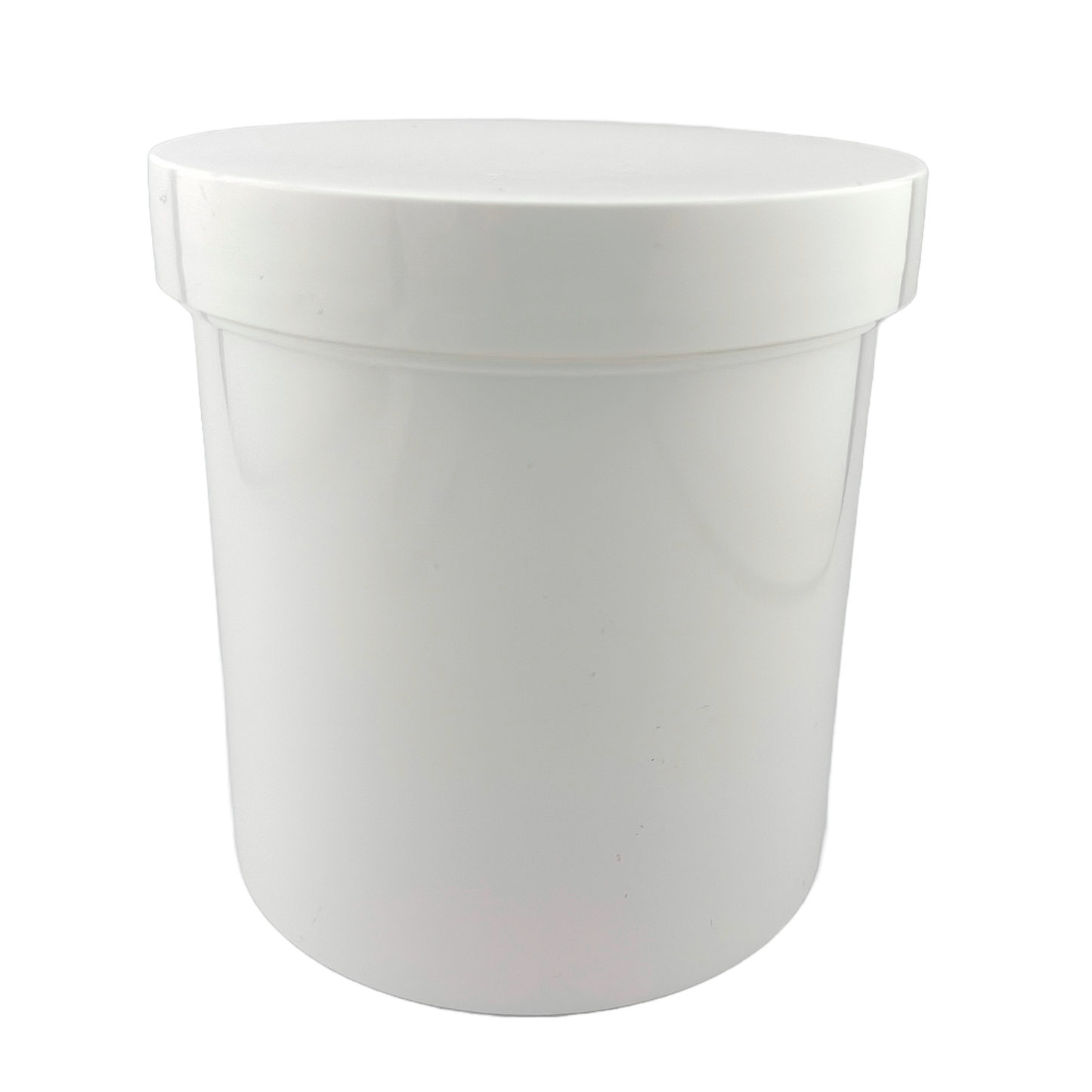

    Packaging
    $3.71 USD
    $3.71 USD $3.71 USD
    Sale Sold out

    989 in stock

    STIRRI® ASM-TF™ universal no-clean tacky soldering flux for leaded or lead-free solder paste used in automated assembly - pneumatic dispensers, solder paste printers, profiled reflow ovens - Automated Soldering Machines.

    Successfully competing with RMA in performance the ASM offers lower viscosity, light color rosin-rich creamy body resulting in clear residue - benefiting from acrylic rosin of high purity and clarity vs RMA using polymerized rosing.

    ROL0 classification, No-clean residue, odorless formulation with QC-Aid™ glowing in UV for instant visual QC certification.

    Low Electrochemical Migration and Surface Insulation Resistance, excellent performance for repair/rework hand-soldering on most surface finishes using all popular soldering methods and technics.

    Suitability

    Designation

    ROL0 classification - no-clean and not corrosive. Halide-free (<0.05%). Surface insulation resistant. No copper mirror breakthrough. Low electrochemical migration (<1 decade drop)

    Viscosity

    42-54 mPa/s (Malcom @ 10 RPM/25ºC (x 10³mPa/s))

    Disclaimer

    The information contained herein is based on technical data that we believe to be reliable and is intended for use by persons having relevant skills at their own risk. Consumers should make their own tests to determine the suitability of each product for their particular process and take safety measures. Manufacturer/resellers assume no liability for results obtained or damages incurred through the application of the data presented.

    Cleaning "No-Clean"

    “No-clean” indicates cleaning method as defined by IPC standard and does not mean that the flux leaves no residue. No-clean rather means that the flux can be left on PCB for several consecutive SMT assemblies but also won’t cause corrosion if left indefinitely. However, cleaning can be necessary and it is desirable. No-clean fluxes are easily removed using industrial solvents in ultrasonic devices or using commercially available flux residue removers like STIRRI HydraSweep™.

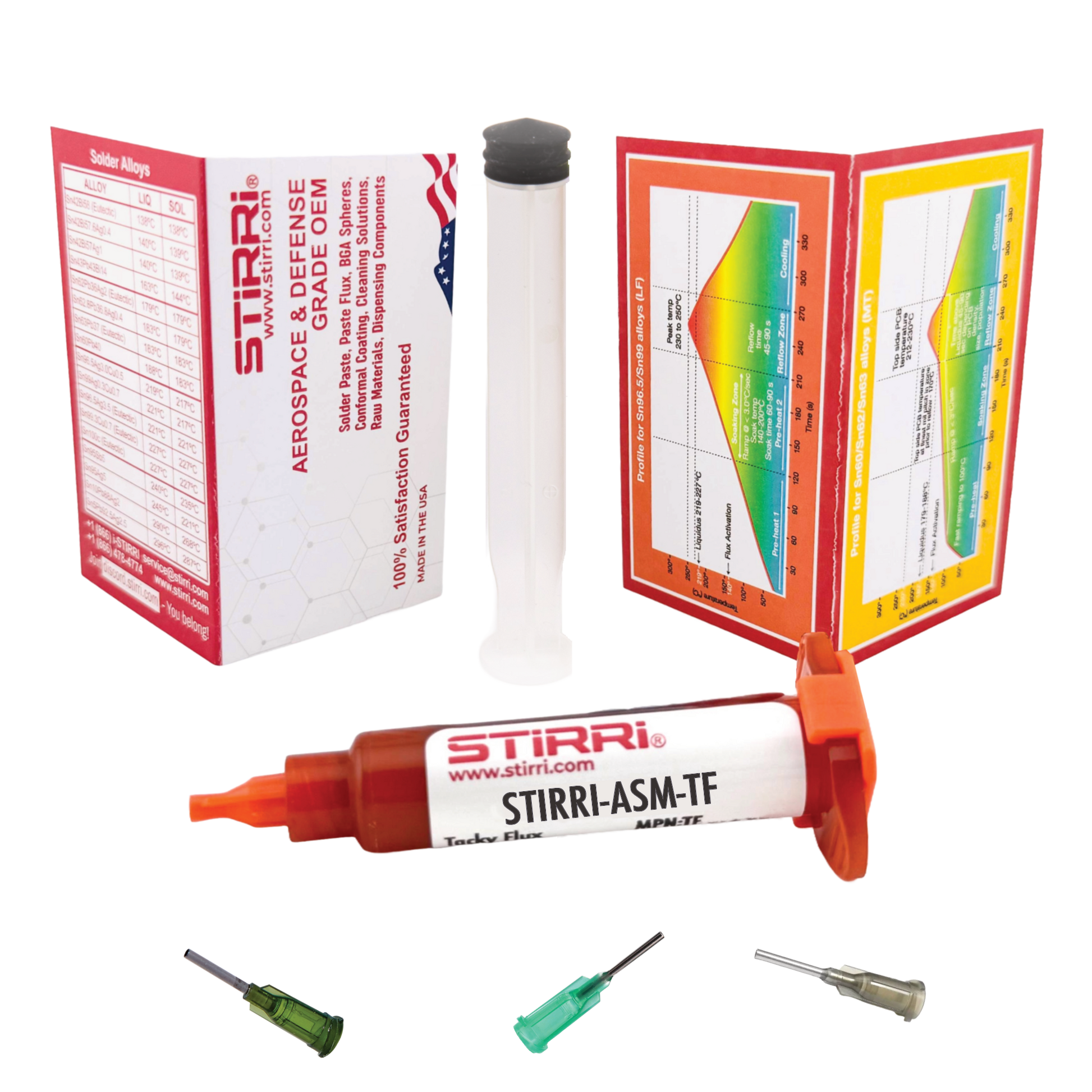

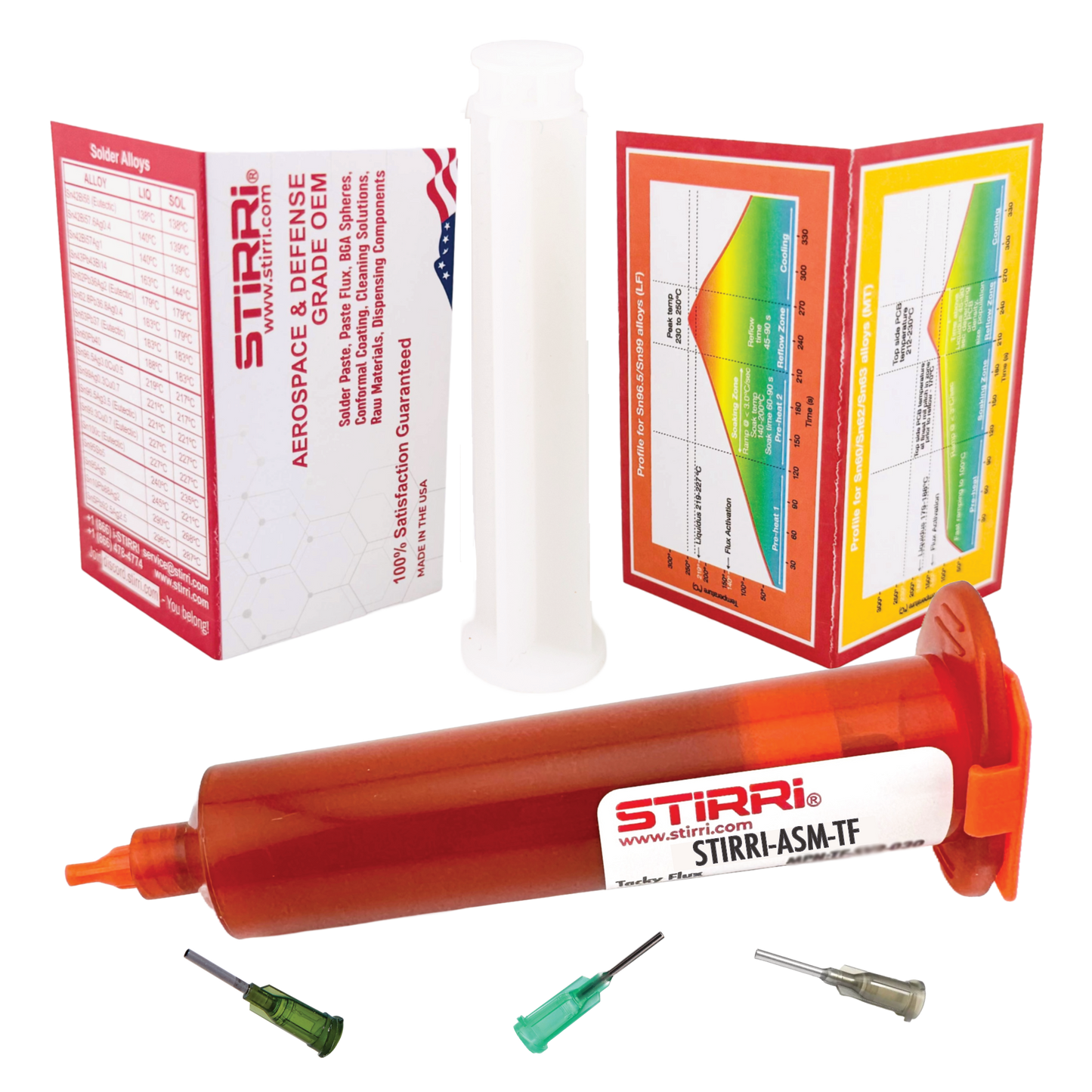

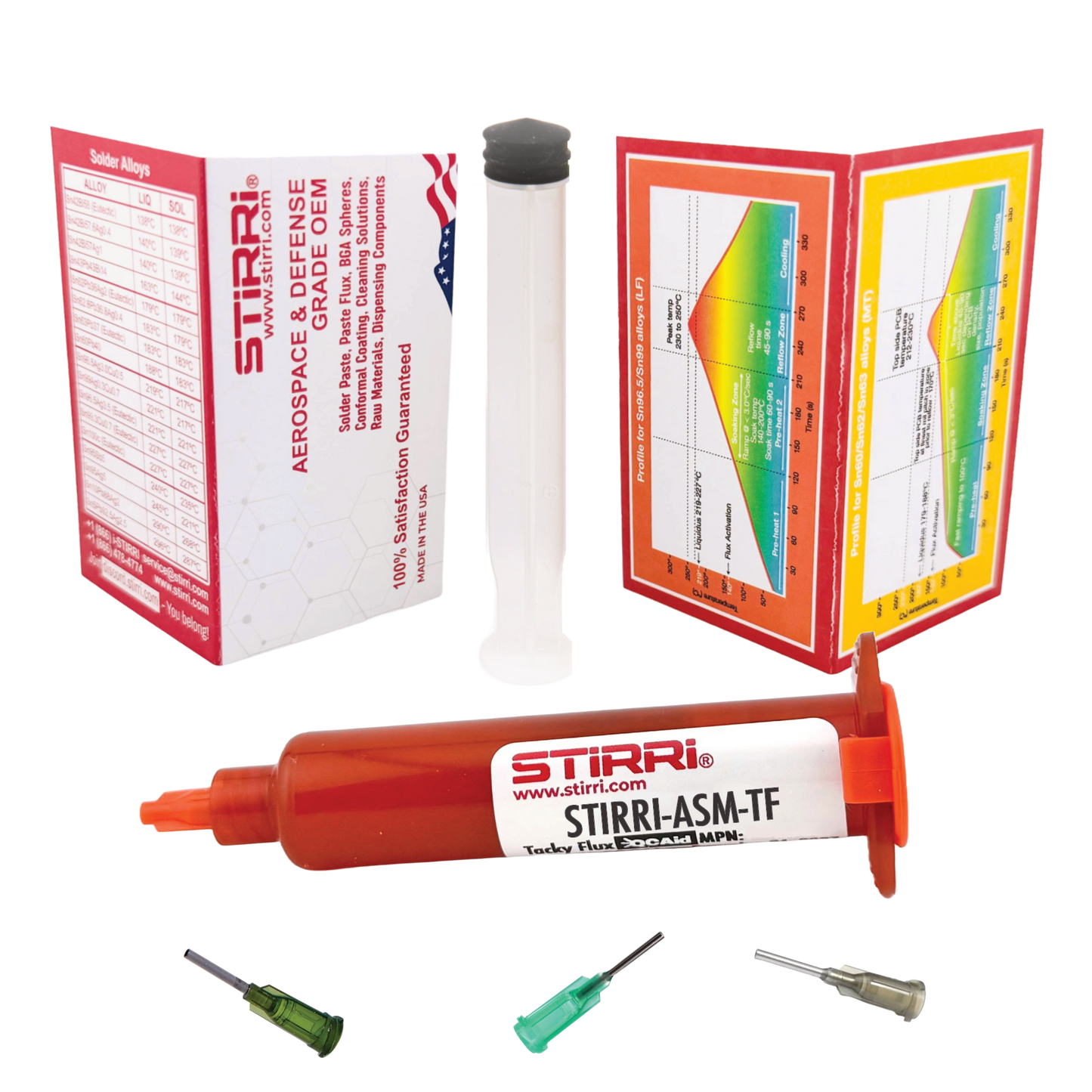

    Dispensing Kit

    This product does not include any Dispensing Kit - a separate purchase!

    Dispensing Kit is an add-on for manual dispensing, used to create a pressure with a plunger similarly to a medical syringe.

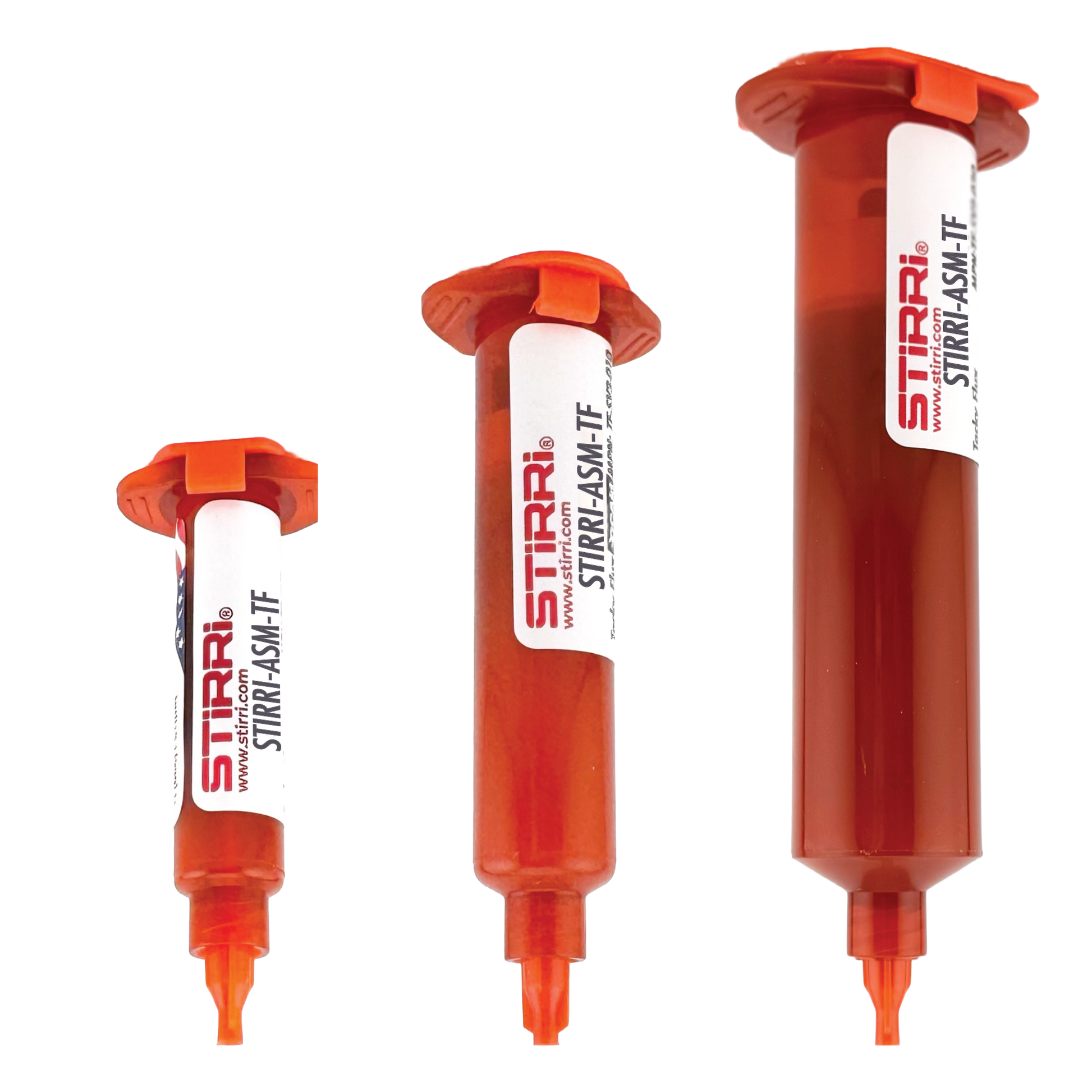

    Air syringes intended for pneumatic dispensing machines use a piston stopper instead of a plunger. Do not remove the piston as it delivers the best seal preventing contact with air!

    Compliance

    This material is certified REACH-compliant - does not use any raw materials from the REACH restricted list of substances of high concern.
